Library

The foundation of any educational environment.

Typology
Library
Site
SMVDU, Katra

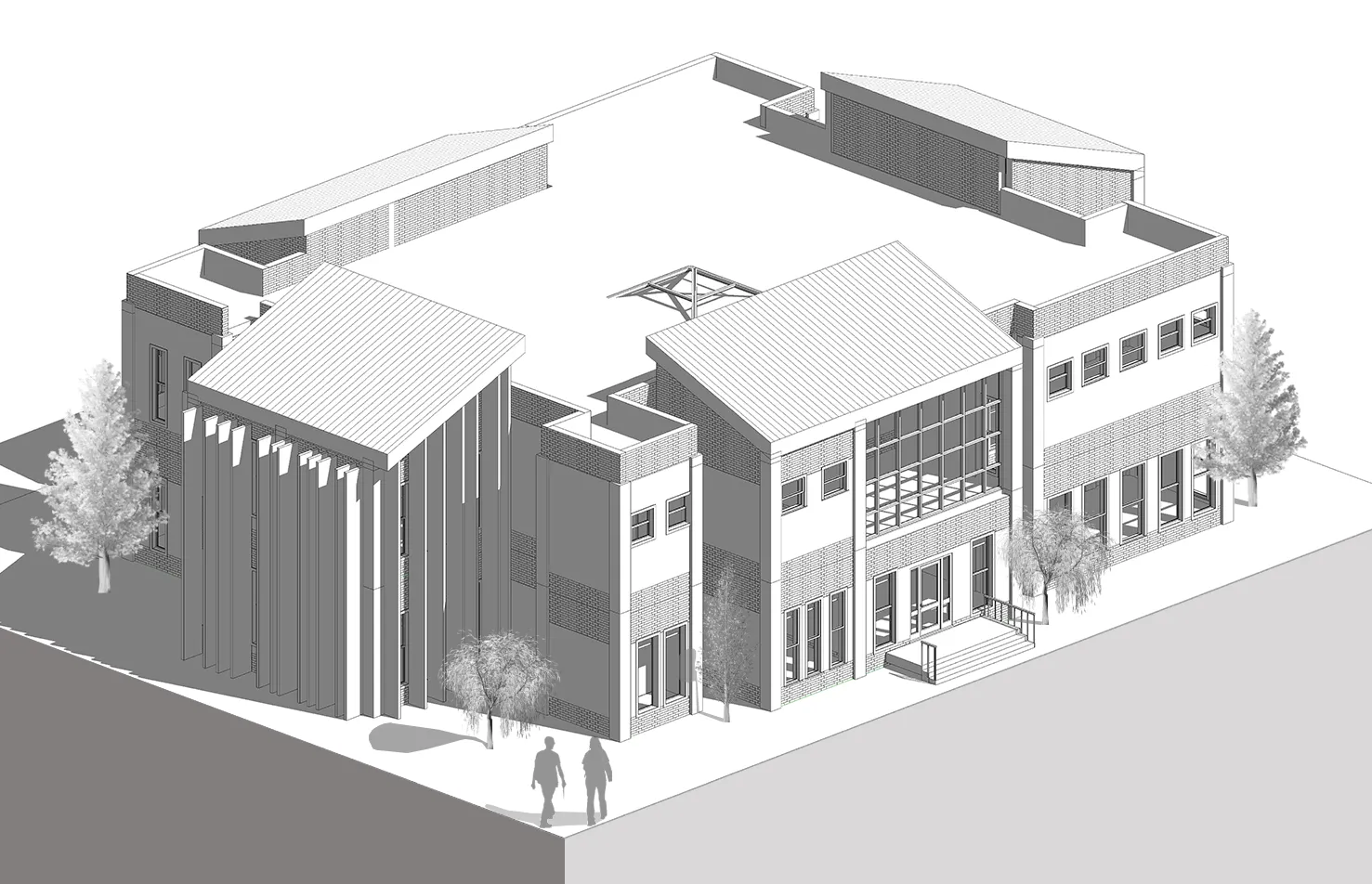

Isometric view of the library.

The user's expectations are evolving, library services are changing and digital tools are transforming the role of a library. It is located in Shri Mata Vaishno Devi University, Katra in the lap of Trikuta hills. The concept behind this project aims towards reconciling the symmetry of the University.

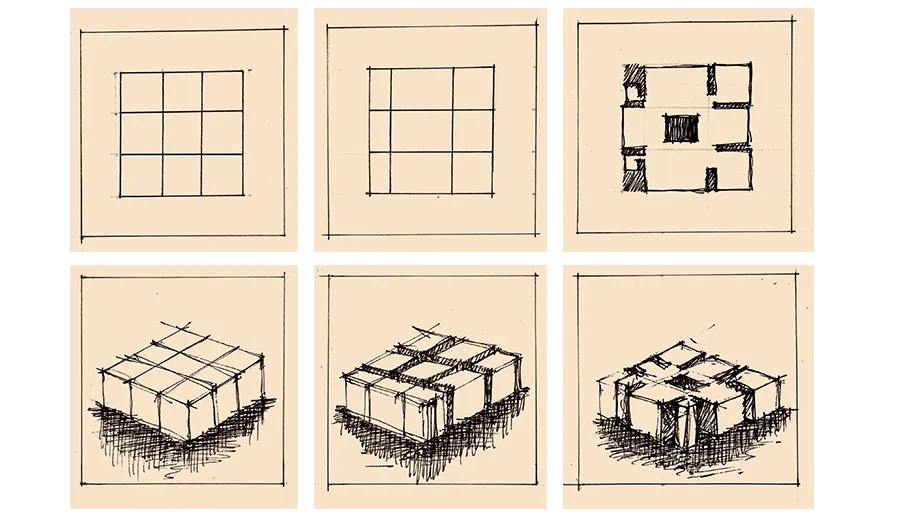

Form diagram showing the subtracted grid.

Form

It was observed that it formed Grid patterns. Since a three dimensional grid consists of repetitive units of spaces, it gave liberty to use subtraction of spaces for achieving the ultimate aim. The grids are laid out at such angles that they form structural, modular networks that aid in preserving symmetry.

View of the approach to the library.
Approach

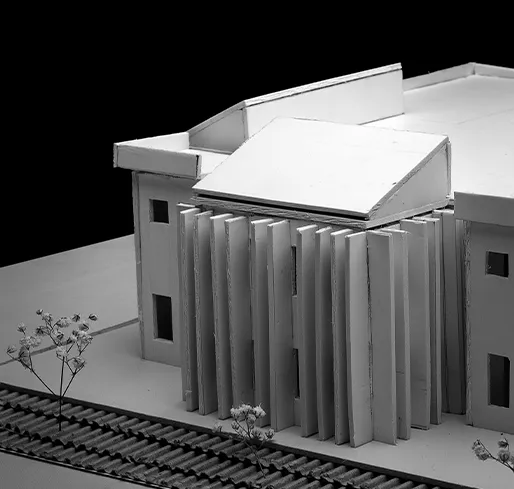

Study model of the library.
Study model

Floor plans

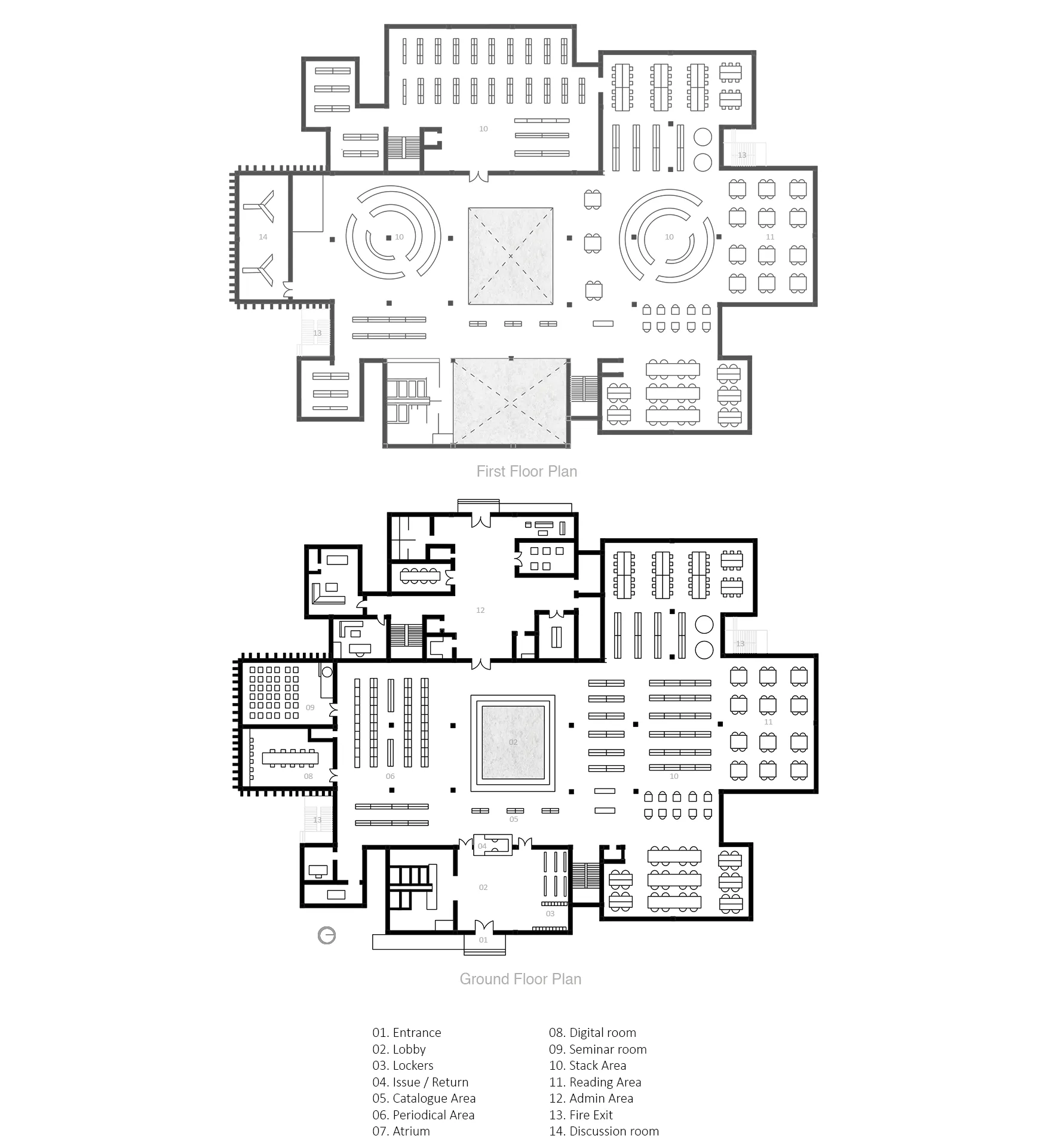

Ground and first floor plans with a numbered legend of the entrance, lobby, lockers, issue and return, catalogue, periodicals, atrium, digital room, seminar room, stacks, reading area, admin, fire exits and discussion room.

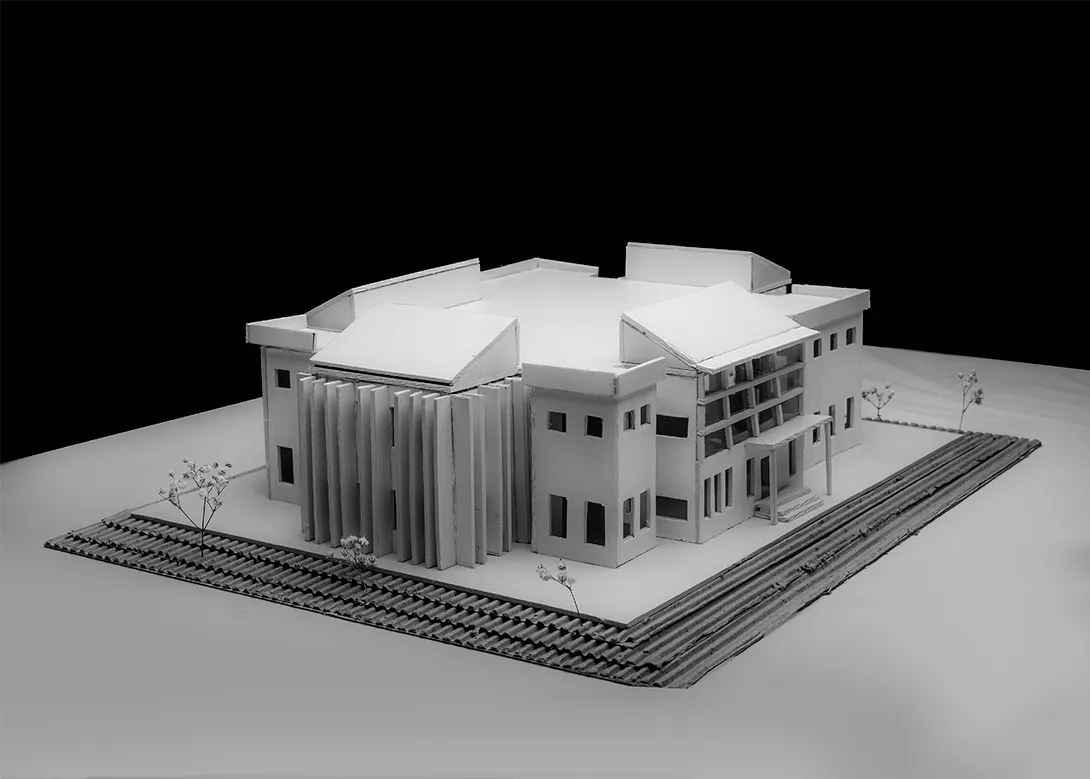

Physical model of the library.

Model

Built in sunboard, mountboard and brownboard, with glass sheet and white glue.

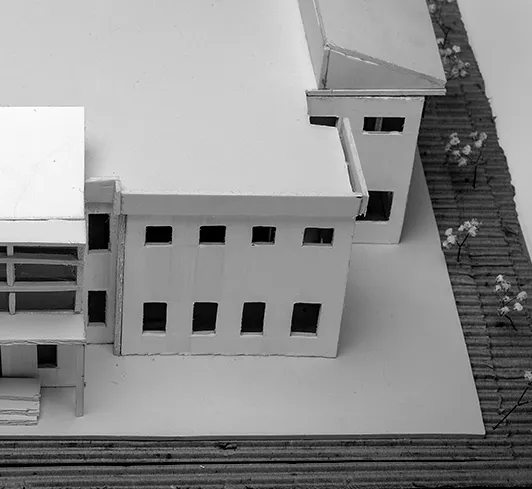

Detail of the physical model.

Elevations & section

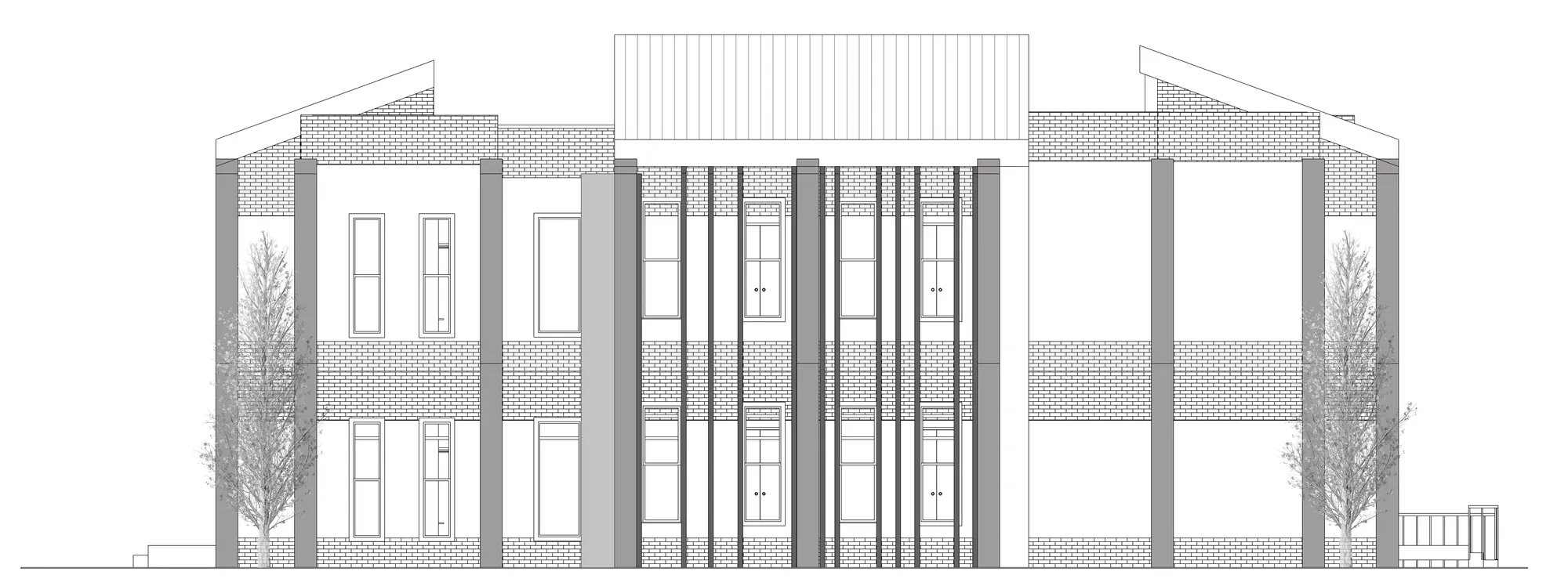

Rendered side elevation of the library.
Side elevation

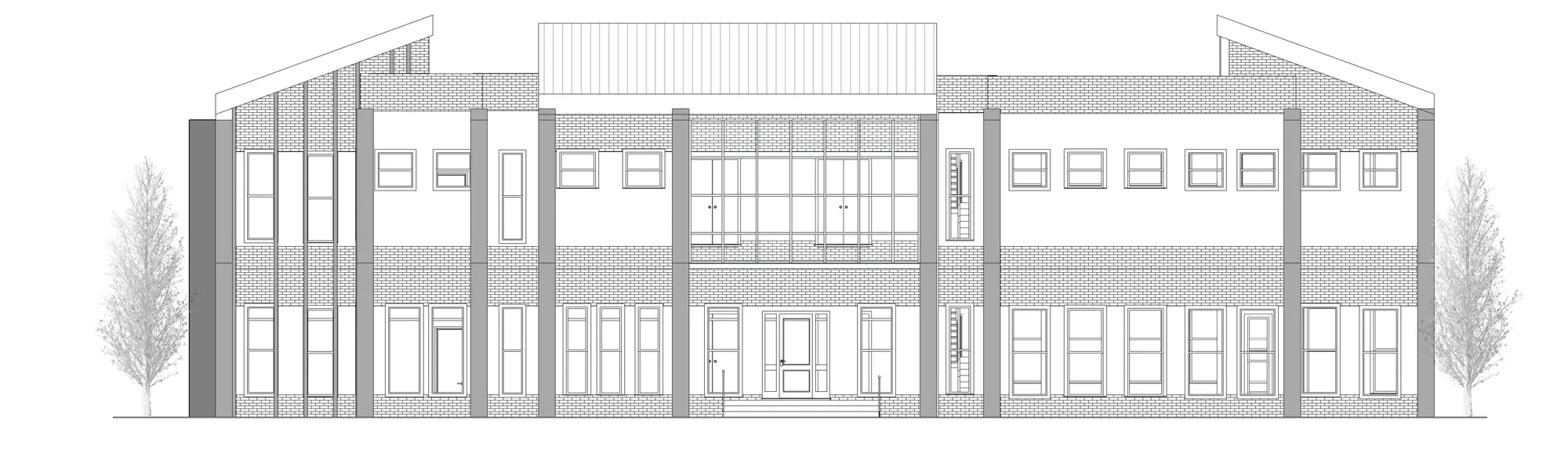

Rendered front elevation of the library.
Front elevation

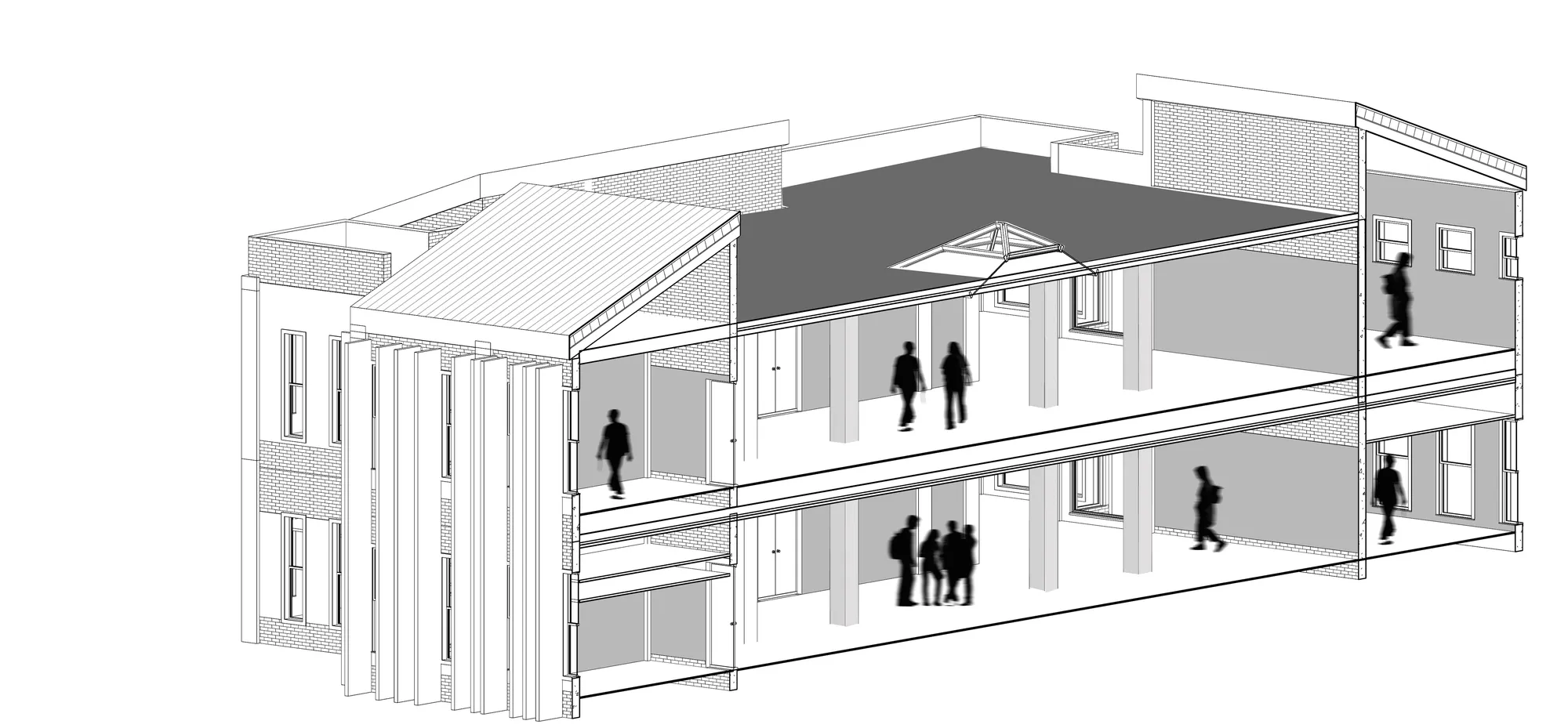

Isometric section through the library.
Isometric section
